记客户跟进计划之周期计划组件的开发过程

先看最终效果

实现过程：

第一想法肯定是百度/google一下看有没有可以白嫖的

理论上，这种功能应该是比较通用的功能，信心满满的开始百度/google了，确实有不少可以用的组件

vue-cron

vcrontab

等等

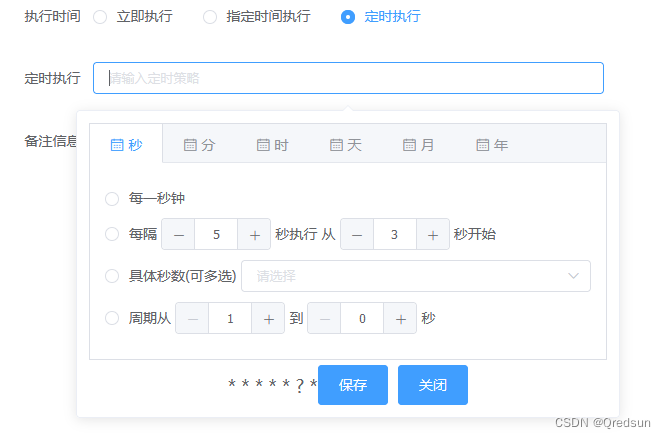

界面差不多都长这样

从界面上看确实很高级，好像可以满足很多复杂的场景，不过问题在于，如果让一个不懂技术的普通用户去用，这怎么能搞明白，还不得天天找客服或是干脆放弃，So, 又努力找了找看有没有简单一点的，最终还真找到了，一个长这样的

看着跟我想要的效果很接近了，再次满怀信心的各种试，最后发现

1. 样式不好定义
2. 生成的cron表达式不太对

最后没办法，只能放弃了，选择自已开发

经过两三个小时的折腾，搞出来了，代码如下

Scheduler.Vue

<template>
  <div>
    <div class="flex flex-wrap gap-4 items-center">

      <el-select v-model="selectedLevel" @change="handleLevelChange" style="width:80px;">
        <el-option value="day" label="每天">每天</el-option>
        <el-option value="week" label="每周">每周</el-option>
        <el-option value="month" label="每月">每月</el-option>

        <el-option value="year" label="每年">每年</el-option>

      </el-select>
      <el-select v-model="selectedMonth" @change="handleSelectChange" v-if="selectedLevel == 'year'" style="width:90px;">
        <!--添加1-12月-->
        <el-option v-for="month in 12" :key="month" :value="month" :label="month + '月'">{{ month }}月</el-option>
        <!-- Add more months here -->
      </el-select>

      <el-select
v-model="selectedDate" @change="handleSelectChange"
        v-if="selectedLevel == 'month' || selectedLevel == 'year'" style="width:90px;">
        <!--1-31-->
        <el-option v-for="date in 31" :key="date" :value="date" :label="date + '日'">{{ date }}日</el-option>
        <!-- Add options for selecting date -->
      </el-select>

      <el-select
v-model="selectedDayofWeek" @change="handleSelectChange" v-if="selectedLevel == 'week'"
        style="width:120px;">
        <el-option value="2" label="星期一">星期一</el-option>
        <el-option value="3" label="星期二">星期二</el-option>
        <el-option value="4" label="星期三">星期三</el-option>
        <el-option value="5" label="星期四">星期四</el-option>
        <el-option value="6" label="星期五">星期五</el-option>
        <el-option value="7" label="星期六">星期六</el-option>
        <el-option value="1" label="星期日">星期日</el-option>
      </el-select>

      <el-select v-model="selectedHour" @change="handleSelectChange" style="width:90px;">
        <el-option v-for="hour in 24" :key="hour" :value="hour" :label="hour + '时'">{{ hour }}时</el-option>
        <!-- Add options for selecting hour -->
      </el-select>

      <el-select v-model="selectedMinutes" @change="handleSelectChange" filterable style="width:90px;">
        <!-- Add options for selecting minutes -->
        <el-option v-for="minute in 60" :key="minute" :value="minute" :label="minute + '分'">{{ minute }}分</el-option>
      </el-select>
    </div>
    <div v-if="debug==true">
      <p>Natural Language Description: {{ desc }}</p>
      <p>Cron Expression: {{ cron }}</p>
    </div>
  </div>
</template>

<script>
export default {
  // 组件的props
  props: {
    modelValue: {
      type: Object,
      required: true,
    },
    // 是否显示调试信息,true时会显示cron表达式和自然语言描述
    debug: {
      type: Boolean,
      default: false,
    },
  },
  // 向父组件传递数据
  emits: ['update:modelValue'],
  data() {
    return {
      selectedLevel: 'day',
      selectedMonth: '',
      selectedDate: '',
      selectedHour: '',
      selectedMinutes: '',
      desc: '',
      cron: '',
      json:{},
      levelMap: {
        day: '每天',
        week: '每周',
        month: '每月',
        year: '每年',
      },
      dayofWeekMap: {
        2: '星期一',
        3: '星期二',
        4: '星期三',
        5: '星期四',
        6: '星期五',
        7: '星期六',
        8: '星期日',
      },
    };
  },
  methods: {
    handleLevelChange() {
      // Implement logic to update other options based on the selected level
      //清除其他选项
      this.selectedMonth = '';
      this.selectedDate = '';
      this.selectedDayofWeek = '';
      this.selectedHour = '';
      this.selectedMinutes = '';
      this.desc = '';
      this.cron = '';
      this.json = {};
      //根据选项设置默认值
      // 更新modelValue
      const valueObj = {
        desc: this.desc,
        cron: this.cron,
        json: this.json,
      };
      this.$emit('update:modelValue', valueObj);
    },
    // 处理下拉框选择事件
    handleSelectChange() {
      // Implement logic to update other options based on the selected lev
      switch (this.selectedLevel) {
        case 'year':
          this.desc = `每年${this.selectedMonth}月${this.selectedDate}日${this.selectedHour}时${this.selectedMinutes}分`;
          this.json = {
            level: 'year',
            month: this.selectedMonth,
            day: this.selectedDate,
            hour: this.selectedHour,
            minute: this.selectedMinutes,
          };
          this.cron = `0 ${this.selectedMinutes} ${this.selectedHour} ${this.selectedDate} ${this.selectedMonth} ?`;
          break;
        case 'month':
          this.desc = `每月${this.selectedDate}日${this.selectedHour}时${this.selectedMinutes}分`;
          this.json = {
            level: 'month',
            day: this.selectedDate,
            hour: this.selectedHour,
            minute: this.selectedMinutes,
          };
          this.cron = `0 ${this.selectedMinutes} ${this.selectedHour} ${this.selectedDate} * ?`;
          break;
        case 'week':
          this.desc = `每周${this.dayofWeekMap[this.selectedDayofWeek]}${this.selectedHour}时${this.selectedMinutes}分`;
          this.json = {
            level: 'week',
            dayOfWeek: this.selectedDayofWeek,
            hour: this.selectedHour,
            minute: this.selectedMinutes,
          };
          this.cron = `0 ${this.selectedMinutes} ${this.selectedHour} ? * ${this.selectedDayofWeek}`;
          break;
        case 'day':
          this.desc = `每天${this.selectedHour}时${this.selectedMinutes}分`;
          this.json = {
            level: 'day',
            hour: this.selectedHour,
            minute: this.selectedMinutes,
          };
          this.cron = `0 ${this.selectedMinutes} ${this.selectedHour} * * ?`;
          break;
      }
      const valueObj = {
        desc: this.desc,
        cron: this.cron,
        json: this.json,
      };
      this.$emit('update:modelValue', valueObj);
    },
  },
};
</script>

<style scoped>/* Add your component styles here */</style>

使用方法也很简单，直接费用即可

//引入Scheduler组件
import Schduler from '@/components/Scheduler.vue'
//页面中使用
<Scheduler v-model="formData.scheduler" :debug="false" />

v-model绑定的是一个对象

{
  desc:"",//自然语言描述
  cron:"",//cron表达式
  json:"",//json表达式
}

使用的时候可以如下方式

 <p class="text-lightest pt-2">cron expression: {{formData.scheduler.cron}}</p>
 <p class="text-lightest pt-2">cron desc: {{formData.scheduler.desc}}</p>

完成
